Oasser Car Battery Charger 6/12V Automatic Battery Charger Maintainer Portable Intelligent Smart Charger with 11-Stage Pulse Repair Charger for Car Truck Motorcycle Lawn Mower Boat(Black)

$36.99

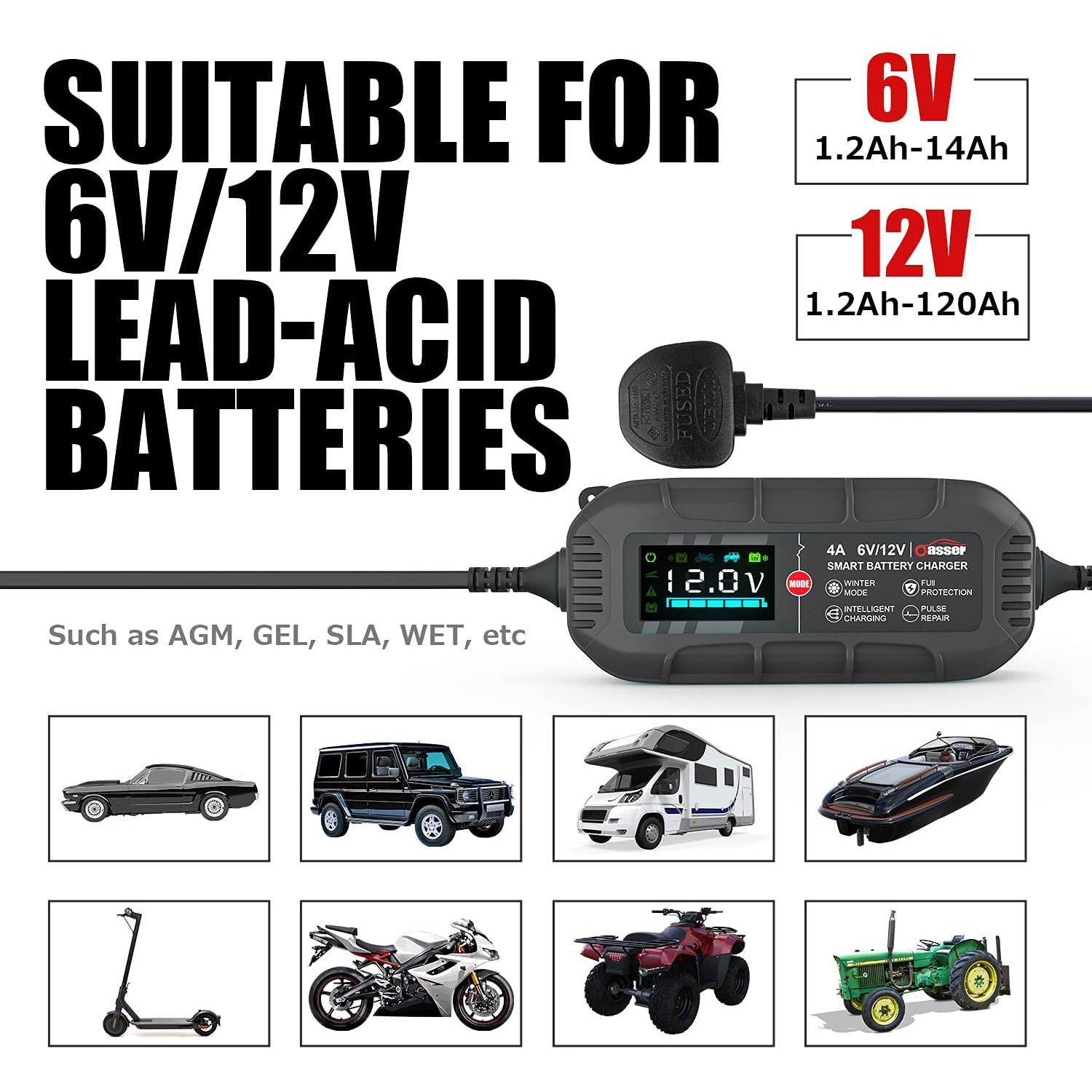

  • 【smart and safe】all-in-one 6V/12V battery charger that can perform battery detection, battery charging, battery maintenance, trickle charger and battery desulfator. With IP65 level of dust and water protection, suitable battery types: lead-acid, wet, MF, GEL and AGM (1.2-120Ah)
  • 【wide application】compatible with cars, motorcycles, lawn mowers, ATVs, lawn tractors, trucks, SUVs, boats, PWCs, classic cars, and more. Once connected, the battery charger automatically identifies the battery status to provide safe and efficient charging and extend battery life
  • 【multi-colour LED screen】the color symbol clearly and visibly shows failure sign, charge voltage, battery level, charging mode , winter mode, etc. Easy to operate, one click to switch 6 charging modes and leave the charger to do the rest
  • 【11-stage fully automatic charging】Automatically detects battery sulfation and acid stratification, take pulse repair function to restore lost battery performance, automatically adapt to the charging current without manual adjustment, automatically stop when the battery is fully charged

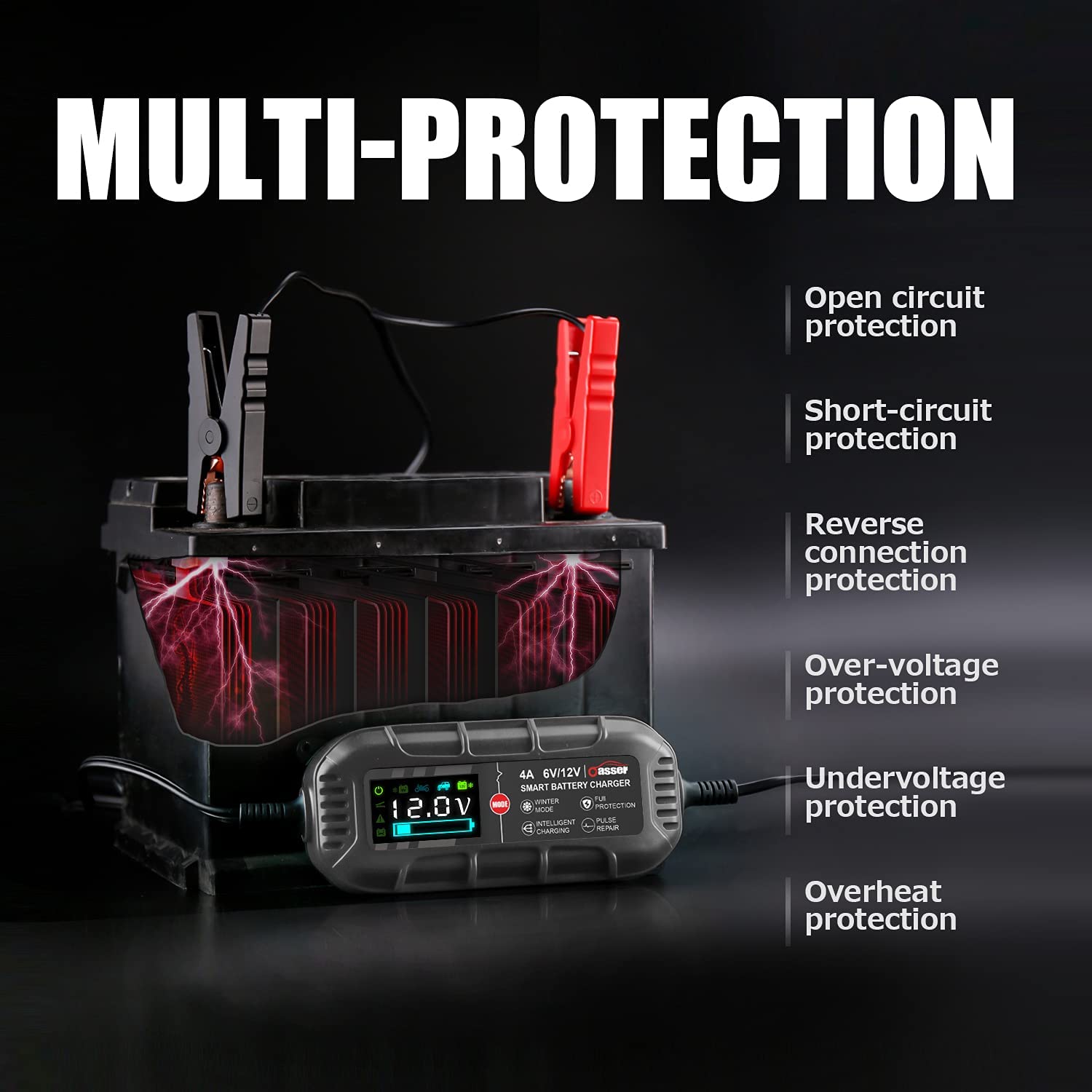

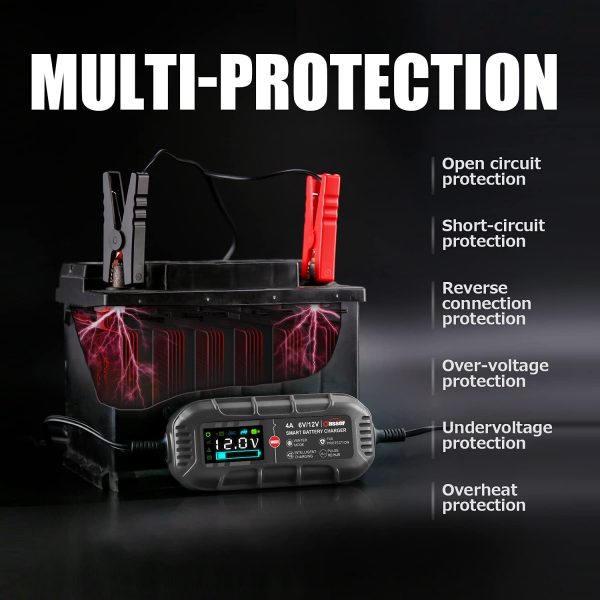

  • 【multiple protection】the automatic smart battery charger provides open circuit protection, short circuit protection, battery reverse connection protection, over-voltage protection, under-voltage protection, overheating protection

Out of stock

Category:

Description

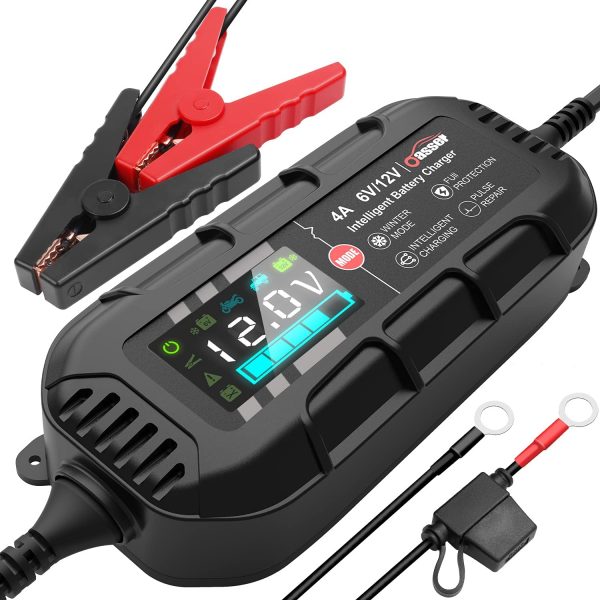

6V/12V 4A battery charger, 6 charger modes, one-click select and leave the charger to do the rest

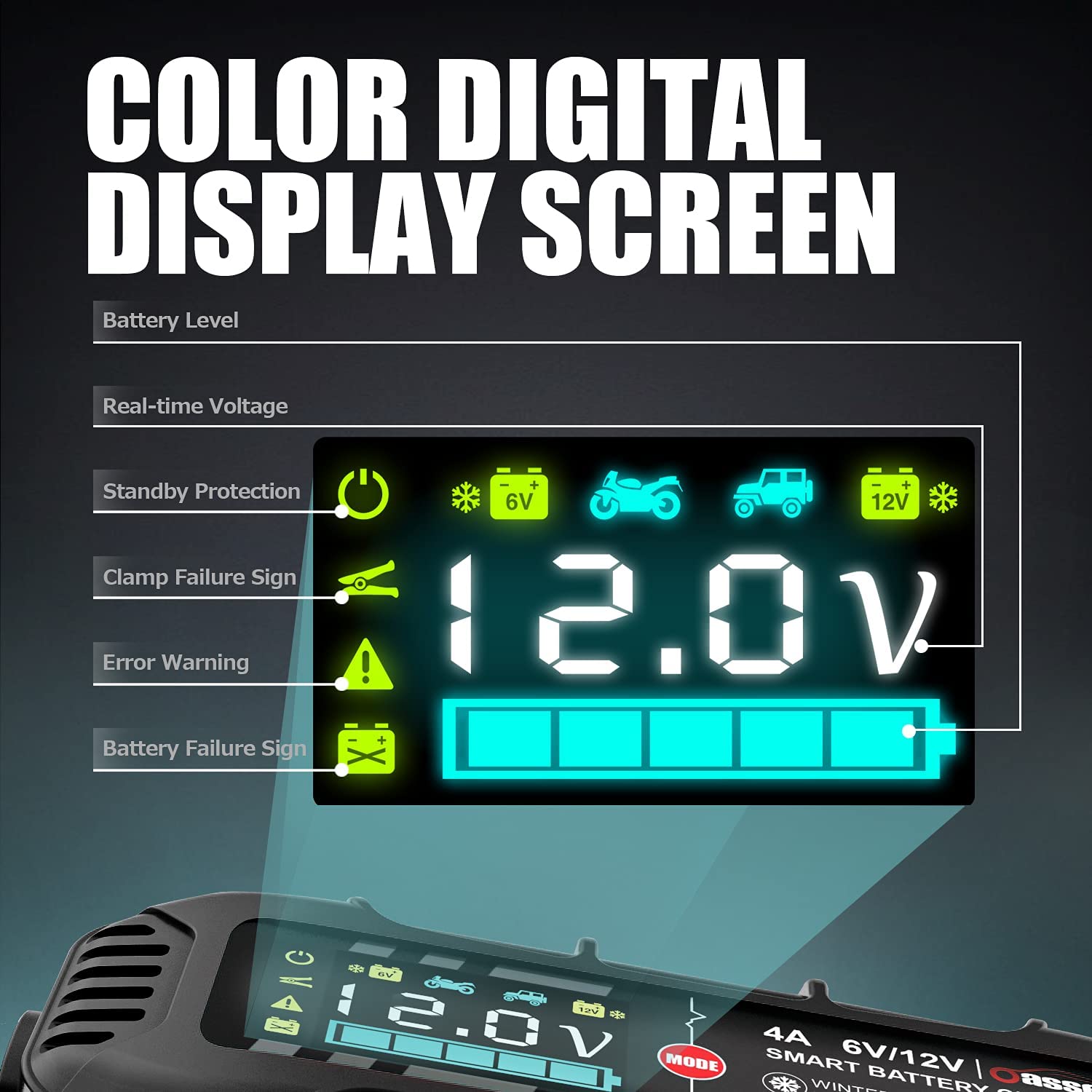

Using a multi-colour LED screen, the battery charger clearly shows charging status, battery status; charge voltage, summer mode, winter mode, etc.

If a sign appears on the product, the charger will enter the protection program and there will be no output and the LCD display will flash simultaneously.

  • The clamp sign will appear on the charger display in the following cases:

When the red/black clamp is a short circuit or reverse connection.

  • A warning sign will appear on the charger display in the following cases:

In 6V charging mode, the voltage between the red and black clamps is lower than 4.0V or the battery voltage is higher than 8.0V

In 12V charging mode, the voltage between the red and black clamps is lower than 8.0V or the battery voltage is higher than 16.0V

  • The battery failure sign appears on the charger display in the following cases:

After the battery is charged by the pulse program, the battery voltage is still lower than 4.5V in 6V charging mode or 9V in 12V charging mode.

After the battery enters the constant voltage program, the battery voltage is still lower than 4.5V in 6V charging mode or 9V in 12V charging mode.

After the battery is charged by the regenerative program, the battery voltage is still lower than 6V in 6V charging mode or 12V in 12V charging mode.

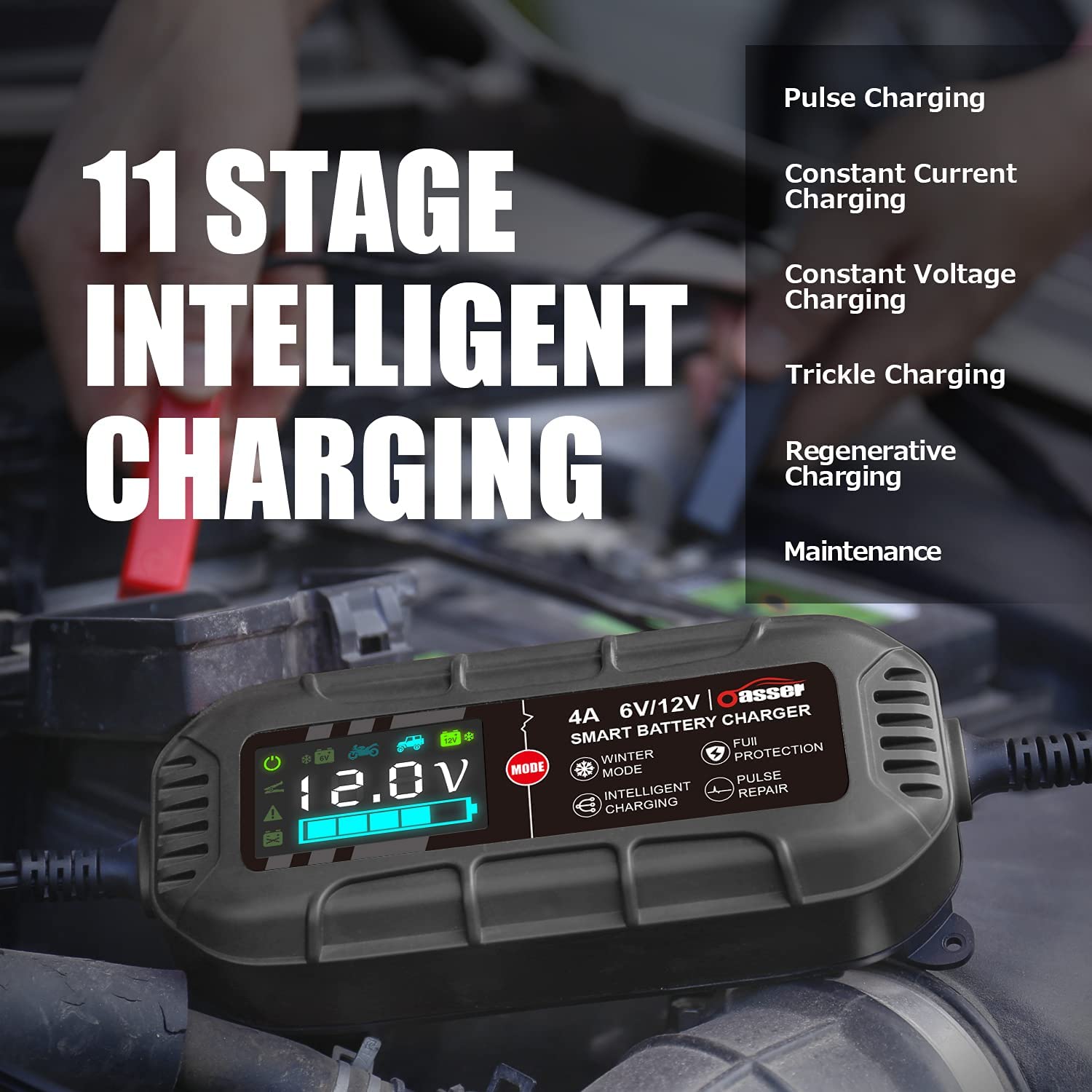

Adopt 11-stage intelligent software to control the charging process, which can achieve the best charging effect and better maintenance of the battery.

Compared to the universal 3-stage charging, this battery smart charger has 11-stage automatic charging process which can achieve maximum saturation of charging for the battery, to provide efficient, safer and more stable charging, and extend the battery life.

step1: Measurement

step2: initialization and pulse charging

step3: soft start

step4-7: constant current charging

Step8: constant voltage

step9: trickle charge

step10: detection/regeneration

step11: maintenance

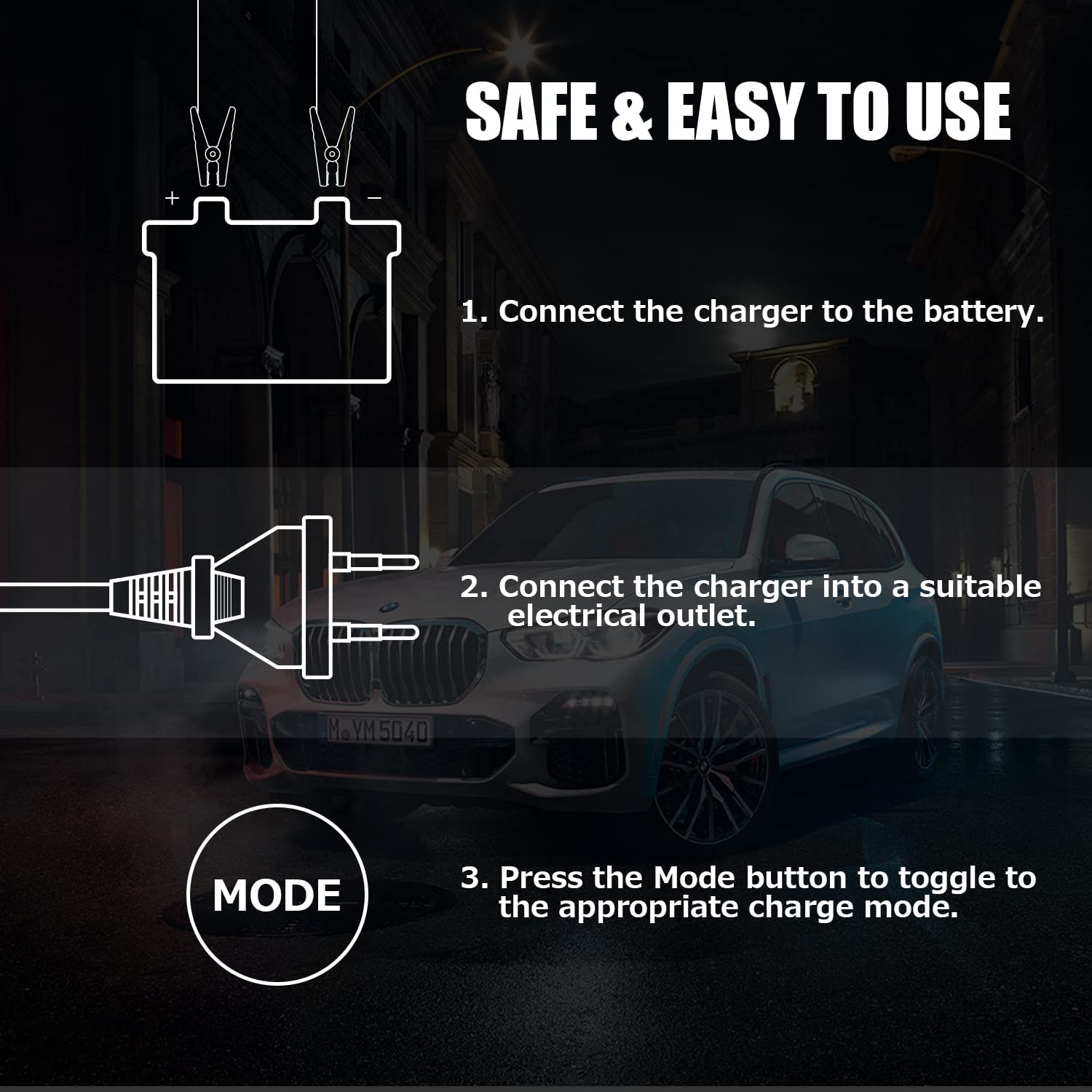

Easy to operate the battery charger, just simply press the MODE button and leave the charger to do the rest.

Adequate charging in winter.

It will enter the winter mode automatically below 10℃.

It will enter the summer mode automatically above 28℃.

Built in micro-processor controlled program provides multi-level safety protection, to ensure the stability of the circuit and safe operation.
